BAS-IP doorphones

AA-09 Panel

AA-09G

892,45 € with VAT.

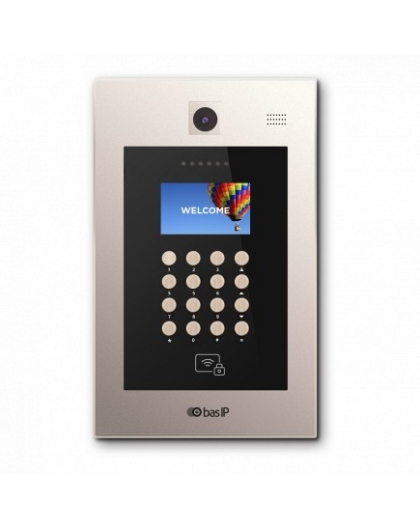

The multi apartment metal outdoor panel AA-09 GOLD – is the perfect solution for office buildings, apartment complexes and cottage settlements. In this model there are vandal-proof metal mechanical buttons, TFT screen and IP camera with wide view angles. Because of the button’s lighting, it will be easy to dial the number of the apartment at night.

More details

General

Panel type:

Multi apartment

Night backlight:

6 LEDs

Case:

Metal

Display:

4,3” TFT, color, with backlight

Light sensitivity:

0,01 LuX

Color:

GOLD

Camera:

1/4”

Protection class:

IP65

Installation:

Flush mount

Angle:

80° horizontal, 64° vertical

Operating temperature:

-40 – +65 °С

Dimensions for installation:

320×192×55 мм

Camera resolution:

1.3 Мп

Power consumption:

6.5W (Active) / 3.6W (Standby)

Dimensions of panel:

328×205×48 мм

Output video:

1280×720, H.264 Main Profile

Power supply:

+ 12 Vdc

Keyboard:

Mechanical buttons

Functionality

Interface:

English, WEB- interface

Integration:

WIEGAND-26 output

Talk mode:

Double-sided

Lock opening:

monitor, by code, by card

Buttons for quick dialing:

Concierge call button

Additionall:

SIP P2P, Built-in relay

Access control:

EM Card reader

Number of ringtones:

4 polyphonic ringtones

Authentication:

Separate password for settings
